GeODin object type: Universal Geotechnical Standard (UGS)


The GeODin "Universal Geotechnical Standard" (UGS) integrates DIN EN ISO 14688 and 14689, DIN ISO 720, BS 5930:1999 as well as GOST 21.302-2013 standards, in one multilingual object type. This is ideal for projects where no specific standard for data collection has been defined.

Typical real world uses for the UGS object type are in the recording of geotechnical borehole data according to international standards and languages, as well as the presentation and documentation of well design and groundwater information. With the help of customisable data types, the results of field and laboratory investigations can be recorded for determining the suitability of soils for civil engineering projects.

General data mask of the object type "Universal Geotechnical Standard", with map preview
General data mask of the object type "Universal Geotechnical Standard", with map preview

The object type "Universal Geotechnical Standard" enables recording information on soil and rock to international standards in the three languages: English, German and Russian.

The following additional standards can be selected for geological layer descriptions:

  • ASTM D2487 / Clark and Walker
  • BS 5930 / Clark and Walker
  • EN ISO 14688 / 14689
  • GOST 25100 - 95 EN
Selection of the different standards for layer data
Selection of the different standards for layer data

Information on stratigraphy and discontinuities can be entered via additional masks in the layer data editor. Stratigraphic information encompasses eon, era, period and epoch; discontinuities can be categorised and specified in detail.

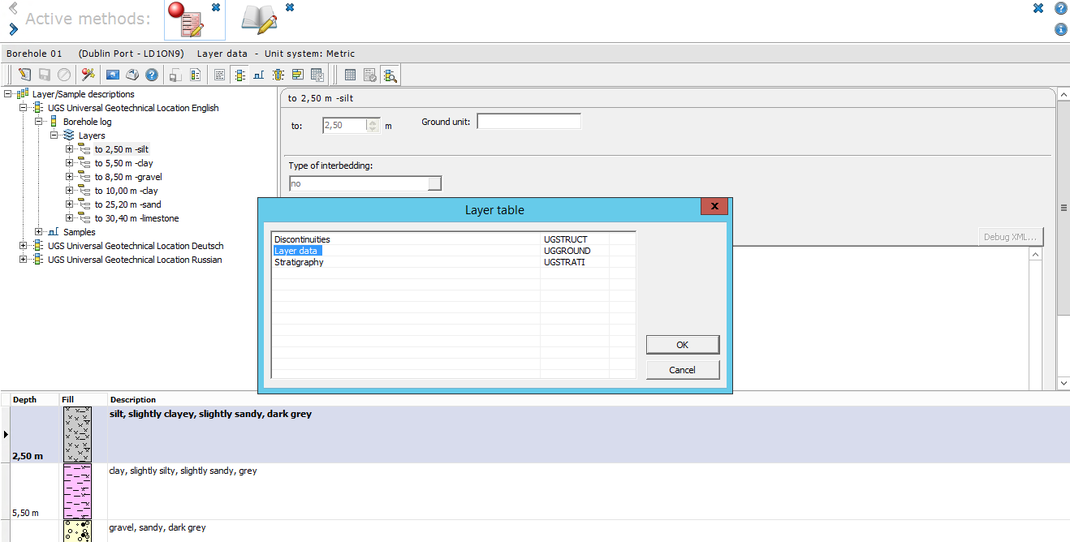

Layer data in three languages with selection window for additional stratigraphy and discontinuities masks
Layer data in three languages with selection window for additional stratigraphy and discontinuities masks

Detailed filter and groundwater information as well as aquifer data can be recorded in the well design editor.

Filter and groundwater information in the screen and aquifer details mask
Filter and groundwater information in the screen and aquifer details mask

Predesigned layouts for the presentation of general data, geological layers, samples, data sequences and groundwater information are provided in English and German.

Checklist:

  • General data
  • Layer data (with additional masks for recording stratigraphy and discontinuities)
  • Sample data
  • Well design data (with additional masks for entering data on well screen and aquifer information)
  • Data sequences (CPT, SPT. etc.)
  • Groundwater/wells
  • Integration of international geological standards
  • Multilingual (English, German, Russian)
  • customisable dictionaries and data entry masks
  • compatible with Version 9
